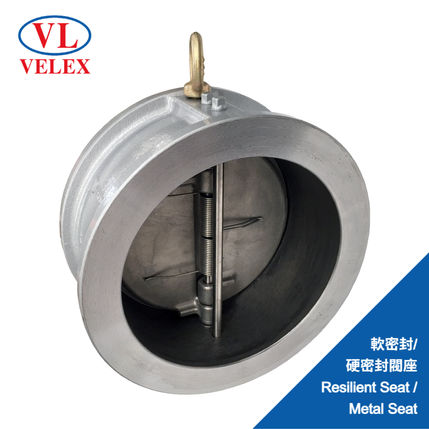

​單瓣對夾式薄型逆止閥 - 硬密封
Short Pattern Type

尺寸 Dimension :  NPS 1 ~ NPS 24   /   DN 25 ~ DN 600  (其餘尺寸均可客製化)

閥體材質 Body Material :  WCB系列, LCC系列, A217系列, SS系列 及 DSS系列  (部分材質可做NACE MR0175處理, 其他材質需求可諮詢)

閥瓣材質 Disc Material :  WCB系列, LCC系列, A217系列, SS系列 及 DSS系列  (部分材質可 做NACE MR0175處理/鍍鋅/鍍鎳/堆焊處理-316L, 13CR, Stellite, 其他材質需求可諮詢)

閥座材質 Seat Material :  NBR, EPDM, VITON, PTFE, 研磨 及 堆焊-316L, 13CR, Stellite  (其他材質需求可諮詢)

法蘭面 Flanged Face :  Flat Face (FF) + O-ring 及 Rasied Face (RF)

工作壓力 Working Pressure :  ASME 150# ~ 300#, 5K ~ 20K 及 PN10 ~ PN40

工作溫度 Working Temperature :  軟密封 - -20 °C ~ 180 °C (-4 °F ~ 356 °F)  /  硬密封 - -196 °C ~ 810 °C (-320 °F ~ 1490 °F)

設計標準 Design Standard :  ASME B16.34 及 API-6D

面間距 Face to Face :  API-6D 及 廠商標準 (Manufacture)

使用工況 Usages :  水系統  (含 民生用水, 汙水處理, 海水淡化, 灌溉用水, 冷卻水...等) 及 氣體.

​

Dimension :  NPS 1 ~ NPS 24   /   DN 25 ~ DN 600  (Other sizes can be customized)

Body Material :  CS Series(PS-2), ASTM A217 Series(PS-3), SS Series(PS-4), DSS Series(PS-5) and B148 Series(PS-6)  (Other materials and special treatments(PS-7) can be consulted.)

Disc Material :  CS Series(PS-2), ASTM A217 Series(PS-3), SS Series(PS-4), DSS Series(PS-5) and B148 Series(PS-6)  (Other materials and special treatments(PS-8)  can be consulted.)

Seat Material :  NBR, EPDM, VITON, PTFE, Metal and Overlaying - 316L/13CR/Stellite  (Other materials can be consulted.)

Flanged Face :  Flat Face (FF) + O-ring and Rasied Face (RF)

Working Pressure :  ASME 150# ~ 300#, 5K ~ 20K and PN10 ~ PN40

Working Temperature :  Soft Seal - -20 °C ~ 180 °C (-4 °F ~ 356 °F)  /  Hard Seal - -196 °C ~ 810 °C (-320 °F ~ 1490 °F)

Design Standard :  ASME B16.34 and API-6D

Face to Face :  API-6D and Manufacturer's Standard (Other dimensions can be customized

Usages :  Water System(PS-9) and Gas.

Annotation:

PS-1 : DI (Ductile Iron) is included A536 65-45-12(FCD450) and A395 60-40-18(FCD400).

PS-2 : CS series is included A216 (WCA, WCB and WCC) and A352 (LCA, LCB, LCC......etc).

PS-3 : ASTM A217 series is included WC1, WC4, WC5, WC6, WC9, WC11, C5, C12......etc.

PS-4 : SS series is covered A351 (CF3, CF8, CF3M, CF8M, CF3MN, CF8C ......etc.

PS-5 : DSS series is covered A890 (2A, 3A, 4A, 5A, 6A, 7A ......etc.

PS-6 : B148 series is covered C95600, C95800.....etc.

PS-7 : The partly body materials can be done the phosphating, NACE MR0175 and RT testing. These partly treatments would be implemented during the casting. NACE must be treated while annealing. The sand mold that did the valve body of RT testing must be treated before casting.

PS-8 : The partly disc materials can be done the special treatments. The special treatments are included NACE MR0175, spraying Nylon, spraying Hala, zincing, nickeling, overlaying (316L, 13CR, Stellite)......etc.

PS-9 : Water System is covered clean water, sewage treatment, sea water desalination, irrigation, cooling water......etc.

The other notes:

1. Pin(Shaft) : If the enquiry is not mentioned the pin material, it would generally be used the same with the disc or high grade than the disc material. If the pin material that used ALBC3 disc is not mentioned, we will quote the pin with 316SS.

2. Spring : Inconel X-750 and 316SS are our standard fitting.  They are included the high torque, general torque and low torque, and would be changed based on your requirement. In the special conditions, we will also provide MONEL and HASTELLOY spring.

3. We also provide the dual plates check valve with the independent suspension design.
